ONLINE FLYING LASER MARKING MACHINE

Online flying laser marking machine Online flying laser marking machine Online flying laser marking machine

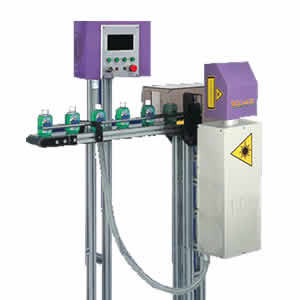

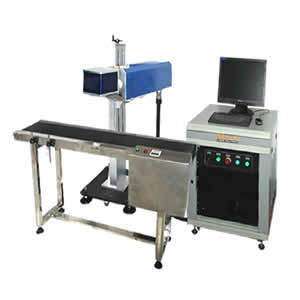

KAL2 KAL3 KAL4

Type KAL2 Simple,KAL3/KAL4 Fast
Laser type/Wavelength Fiber:1064nm,Green laser:532nm,UV laser:355nm,CO2:10.6μm
Laser power Order
Beam quality M2 <3
Pulse width ≤100ns
Pulse repetition frequency 20kHz ~ 200kHz
Power stability>4h +/-2% rms
Marking size

100mm x 100mm
180mm x 180mm
or Order up to 300 x 300mm
Marking depth Adjustable
Marking speed 15000mm/s
Marking width Min 0.01mm(10μm)
Marking character Min 0.1mm
Repeat marking accuracy ≤10μ/rad
Power total ≤800W
Power supply AC 220V/50Hz
Outsize(Differance by types) 2750*850*1350mm

Sample

More >>
Electronics laser marking Electronics laser marking Electronics laser marking

Online flying laser marking machine introduction

Online flying laser marking machine is suitable for food packaging, medicine packaging, cigarette code, wine industry, mineral water, daily cosmetics, cable wires and various production line marking. Customized marking conveyor belt, can achieve rapid marking and highly efficient.

Advantages:

  • Suitable for mass production line marking;
  • Optional high-quality conveyor belt;
  • Online flying marking software;
  • Work plate can be adjusted up and down;
  • 24 hours continuous processing;
  • High efficiency elector-optical conversion;
  • Ten years of life time, cost savings, increase interest;
  • Simple operation;
  • Supports 2D encoding, support any computer operating system and various languages.

    • Applications:

  • Areas with depth, smoothness, and finer requirements;
  • Mobile phone keypad, plastic translucent keys;
  • Electronic components, integrated circuits (IC), PCB;
  • Electrical appliances, communication products, signage;
  • Metal,hardware,stainless steel,nylon,ABS/PVC/PC plastic,rubber resin,ceramic;
  • PVC pipe, medical equipment, tool accessories, precision instruments;
  • Food, pharmaceutical, soft drinks, cigarette code, wine industry;
  • Mineral water, daily cosmetics, wire and cable and a variety of production lines.
